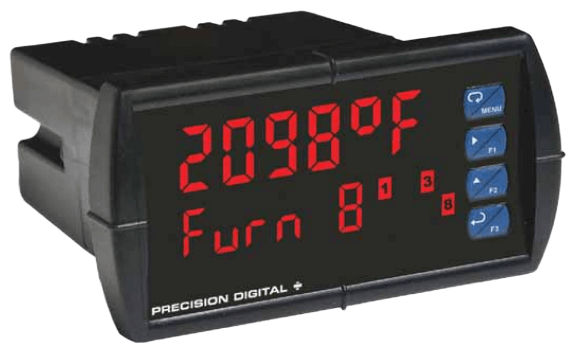

PD7000 ProVu Temperature Digital Panel Meter
Brand: Precision Digital CorporationSpecifications
- J, K, T, E, R, S, B, N, C Thermocouples
- 100 or 1000 Ω Platinum, 10 Copper, 120Ω Nickel RTDs
- 1° or 0.1° Resolution
- Averages up to 10 RTD Sensors
- Automatic Cold Junction Compensation
- NEMA 4X, IP65 Front
- Universal 85-265 VAC or 12/24 VDC Input Power
- Large Dual-Line 6-Character Display, .60" & 0.46"
- Programmable Displays & Function Keys
- Optional SunBright Display Models for Outdoor Applications
- 2 or 4 Relays + Isolated 4-20 mA Output Options
- External 4-Relay & Digital I/O Expansion Modules
- USB, RS-232, & RS-485 Serial Communication Options
- Modbus® RTU Communication Protocol Standard
- On-Board Digital Input
- Onboard USB and MeterView® Pro Programming Software
Specifications
Approvals & Certifications
- UL
Communication
- Modbus
Deadband
- 0 to 100% of Span
Environmental Protection
- IP65
- IP66
- NEMA 4X
Input
- 1-channel
- Thermocouples
Isolation
- 4 kV Input/Output-to-Power-Line
- 500 V Input to Output or Output to P+ Supply
Mounting
- 1/8" DIN
Operating Temperature
- -40° to 65° C (-40° to 150° F)
Operating Voltages
- 50/60 Hz
Output
- 4-20 mA
Power
- 20 W
Power Supply
- 85-265 Vac
- 90-265 Vdc
Relay Output
- 2 or 4 SPDT
- 4 SPST
Resolution
- 0.1° up to Five Digits
- 1° up to Four Digits
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Torque
- 5 In/Lbs
Update Time
- 5 seconds
