Extech 200A AC/DC Mini Clamp Meter+Voltage Detector, MA120
Images are representations only.

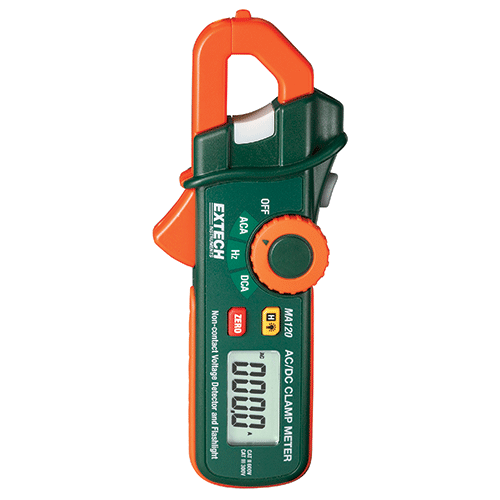

MA120 200A AC/DC Mini Clamp Meter+Voltage Detector

Brand: Extech

The MA120 is a 200 Amp AC/DC mini clamp meter with built-in AC voltage detector and built in LED flashlight. The meter measures Frequency up to 1 kHz with 0.01Hz resolution, auto ranges with auto power off and data hold functions. Complete with a year warranty, 2 AAA batteries and soft case.
Features
  • Measures 200A AC Current up to 100mA resolution.
  • 3% basic ACA accuracy.
  • 0.7" (18 mm) jaw opening; 300MCM cable size.
  • 2000 count LCD display.
  • Non-contact AC Voltage detector (120/240Vac, 50/60Hz) via clamp tip.
  • Built-in white LED flashlight.
  • Measures Frequency up to 1kHz with 0.01Hz resolution.
  • Autoranging with Auto Power Off and Data hold function.

    • Specifications

    Brand

    AC Current

    • 200 A

    AC Voltage (Max. Resolution)

    • NCV

    Basic ACA Accuracy (% Reading)

    • ± 3%

    Data Hold

    • Yes

    DC Current

    • 200 A

    Dimensions, Weight

    • 6.5 x 2.6 x 1.3" (164 x 65 x 32 mm) / 6.2 oz. (176 G)

    Display Counts

    • 2000 Count Backlit LCD

    Frequency (Max. Resolution)

    • 1 kHz (0.01 Hz)

    Jaw Size, Cable Size

    • 0.7" (18 mm), 300MCM

    Max. Resolution

    • 0.1 A

    Documentation

    Data Sheets

    Product Manuals

    Document

    show more
