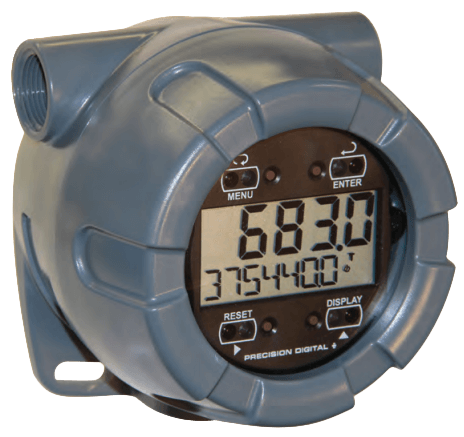

PD6730 Vantageview NEMA 4X Pulse Input Rate/Totalizer
Brand: Precision Digital Corporation
The Vantageview PD6730 is a plastic, field-mounted flow rate/totalizer that can display flow rate and total from a pulse output flowmeter. Its display has a five digit upper line for rate, a seven alpha-numeric character lower line for total, and comes standard with a backlight.
The PD6730 is built in a NEMA 4X and IP65 rated plastic enclosure which can stand up to even the harshest environmental conditions. It can be powered from an included battery or a 24 VDC external power supply.
Some features that really make the PD6730 stand out are its automatic unit conversions from flowmeter k-factor units, ability to log up to 1024 data points, and SafeTouch® through-window buttons. These buttons allow the PD6730 to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.
Features- Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave, Opto-Isolated Inputs
- NEMA 4X, IP65 Plastic Enclosure for Safe Areas
- 5-Digit 0.7" (17.8 mm) Top Display for Rate or Total
- 7 Alphanumeric Character 0.4" (10.2 mm) Lower Display for Rate, Total, Grand Total, Units, and Tag
- 13-Digit Totalizer with Total Overflow Feature
- SafeTouch® Through-Window Button Programming
- Isolated 4-20 mA Output for Rate, Total, or Grand Total
- Two Isolated Open Collector Pulse Outputs, Up to 5 kHz
- Battery, DC, or Output Loop-Powered Models
- Gate Function for Rate Display of Slow Pulse Rates
- K-Factor, Scaling, or Live Input Calibration with 32-Point Linearization
- Automatic Rate, Total, and Grand Total Unit Conversions
- Password Protection
- Backlight Standard on All Models
- On-Board Data Logging
- Modbus® Communications RS-485 Option
- Flanges for Wall or Pipe Mounting
- Operates from -40 to 75°C
Specifications
Communication
- Modbus RTU
- RS-485
Conduit Connection
- 3/4" NPT
Display
- 5-Digits
- 7-Segment
Enclosure / Body Material
- Polycarbonate with UV Stabilizer
Environmental Protection
- IP65
- IP66
- NEMA 4X
Humidity
- 0 to 90% Non-Condensing
Isolation
- 500 V Input to Output or Output to P+ Supply
K-Factor
- May Be Programmed from 0.000001 to 9,999,999 Pulses/Unit
Operating Temperature
- -40° to 75° C (-40° to 167° F)
Output
- 4-20 mA
Power Options
- Battery
Storage Temperature
- -40° to 75° C (-40° to 167° F)
Supply Voltage
- 9 to 30 Vdc
