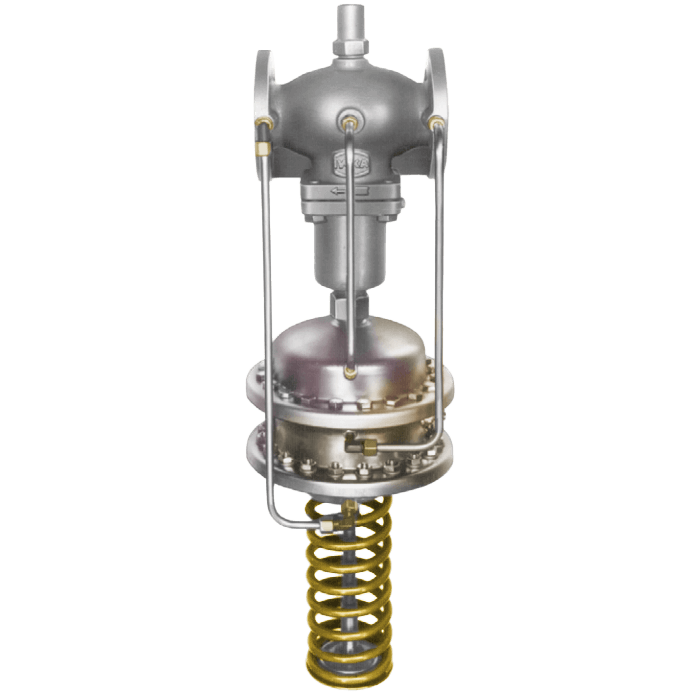

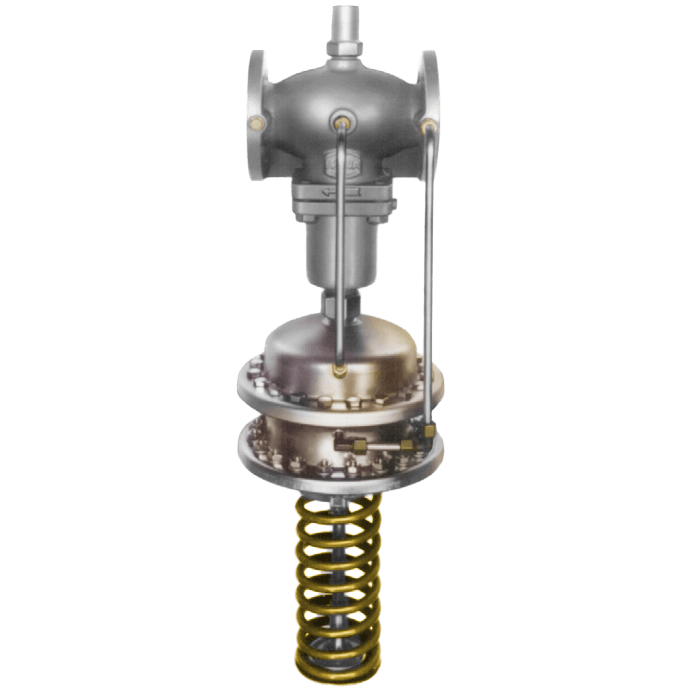

AFPQ/AFPQ 4 Differential Pressure and Flow Controller for VFQ 2 (1)
Brand: Danfoss
The controller is a self-acting differential pressure and flow controller primarily for use in district heating systems. The controller closes on rising differential pressure or when set max. flow is exceeded.
The controller has a control valve with adjustable flow restrictor, an actuator with two control diaphragms and spring for differential pressure setting. Differential pressure control and flow control are independent.
Further on two valve versions are available:
- VFQ 2 with metallic sealing cone
- VFQ 21 with soft sealing cone
Specifications
Brand
Actuator Size
- 38.7 In² (250 cm²)
Applications
- Used in District Heating Systems
Diaphragm Material
- Control Diaphragm: EPDM (Rolling, Fibre Enforced)
Differential Pressure
- psi: 1.45 to 21.76 (kPa: 10 to 150, bar: 0.1 to 1.5) - Differential Pressure Setting Range
Enclosure, Body Material
- 1008 Stainless Steel
- Zinc-Plated & Yellow Chromate
Mounting Position
- Any Position for DN15 to 80, Tmax ≤ 120° C (248° F)
- Horizontal for DN15 to 80, Tmax > 120° C (248° F), DN100 to 250
Nominal Pressure
- psi: 580.2 (kPa: 4,000, bar: 40)
Process Fitting Details
- Compression Fitting G 1/4"
