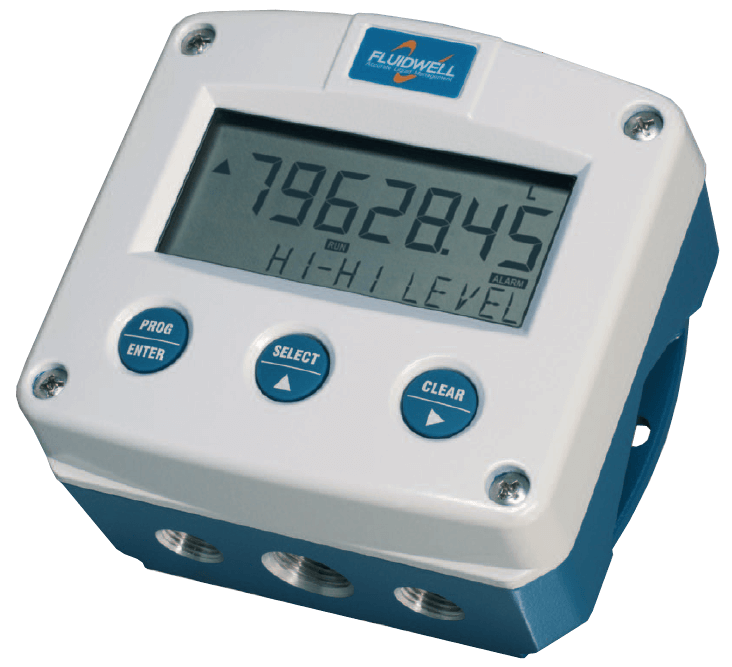

F173 Level Monitor
Brand: Precision Digital CorporationThe F173 is a versatile level indicator with linearization and continuous level monitoring feature.
It offers the facility to set two low level and two high level alarm values.
If desired, an ignore function can be set up to allow for an incorrect level for a certain period of time.
Up to four outputs are available to transmit the alarm condition.
A wide selection of options further enhances the capabilities, including Intrinsic Safety and full Modbus communication.
Features- Displays level and percentage filled
- 15 point linearization of the tank shape - with interpolation
- Four alarm values can be entered: low-low, low, high and high-high level alarm
- Large 17 mm(0.67") digits
- Selectable on-screen engineering units: volumetric or mass
- Explosion/flame proof Ex II 2 GD EEx d IIB T5
- Full Modbus communication RS232/485/TTL
- Loop or battery powered, 8 - 24 Vac / Vdc or 115 - 230 Vac power supply
- Sensor supply 3.2 / 8.2 / 12 / 24 Vdc
Specifications
Accuracy
- ± 0.125% of Full Scale Output
Approvals & Certifications
- ATEX
- CE
- EMC
- IEC
- IEC Ex
Communication
- Modbus ASCII/RTU
Conduit Connection
- 1/2" NPT
- M12
- M16
- M20
- PG9
Display
- Numeric & Alphanumeric
Electrical Connectors
- Removable Plug-in Terminal Strip
Enclosure, Body Details
- Polycarbonate Window
- Silicone Sealed. Three Industrial Micro-Switch Keys. UV-Resistant Silicone Keypad.
Enclosure, Body Material
- Die Cast Aluminum
- GRP (Glass-Reinforced Polyester)
Environmental Protection
- IP65
- IP67
- NEMA 4X / IP65, 67
Function
- Linear
Input
- 0-10 Vdc
- 4-20 mA
- Active Pulse Signals
- NAMUR
- NPN/PNP Pulse
- Reed Switch
- Sine Wave (Coil)
K-Factor
- Programmable from 0.0001 to 99999
Load Impedance
- 3,000 ohms Minimum
Operating Temperature
- -30° to 80° C (-22° to 176° F)
Output
- 0-10 Vdc
- 4-20 mA
Power
- 115-230 Vac
- 8-24 Vac/Vdc
Resolution
- 14-bits
Voltage Drop
- 2.5 V @ 20 mA
