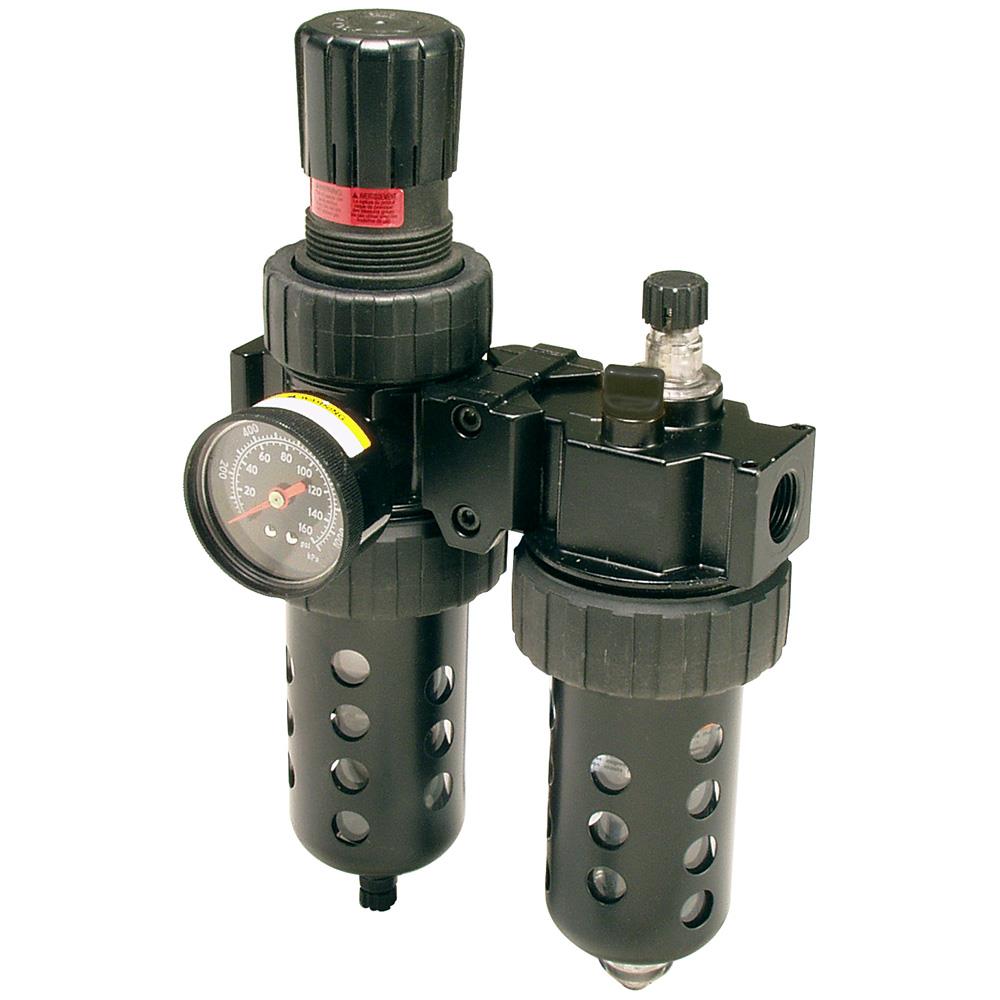

Standard Modular 2-Unit Mist FRL Combo - 07H Series
Brand: Parker Hannifin Corp.Parker's 07H is a 2-piece modular mounted integral particulate filter / regulator and mist style lubricator. The 07H provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows.
Specifications
Body Material
- Zinc
Bowl Material
- Polycarbonate / Zinc
Configuration
- F/R+L
Drain Option
- Twist / Automatic Float
Element
- 5 | 40
Flow Rate (dm3/sec)
- 47 to 68
Flow Rate (scfm)
- 100 to 145
Gauge Port
- 1/4"
Maximum Inlet Pressure (bar)
- 17
Maximum Inlet Pressure (psig)
- 250
Operating Temperature (°C)
- 0° to +52° C
Operating Temperature (°F)
- +32° to +125° F
Port Size
- 3/8", 1/2", 3/4"
Port Type
- BSPP / BSPT / NPT
Pressure Control Range (bar)
- bar: 0 to 4, 0 to 8, 0 to 17
Pressure Control Range (psig)
- psig: 1 to 60, 2 to 125, 1 to 250
Product Type
- Standard Combination
Seal Material
- Nitrile
