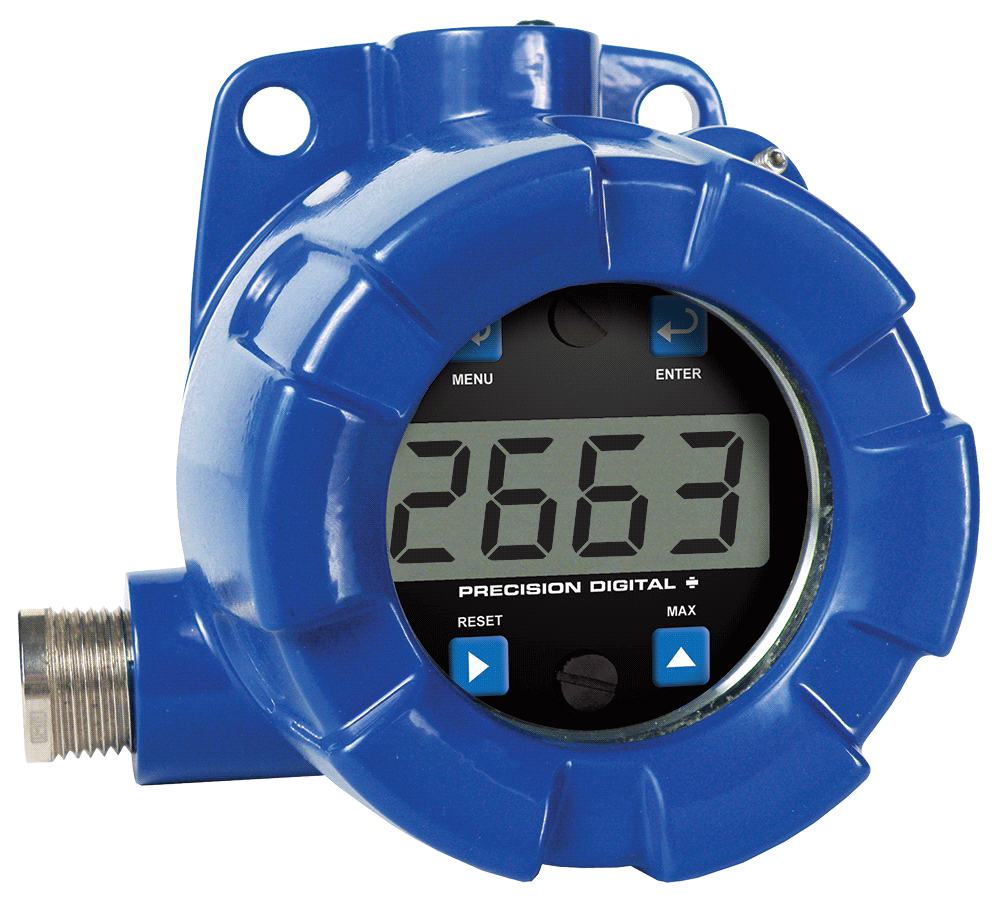

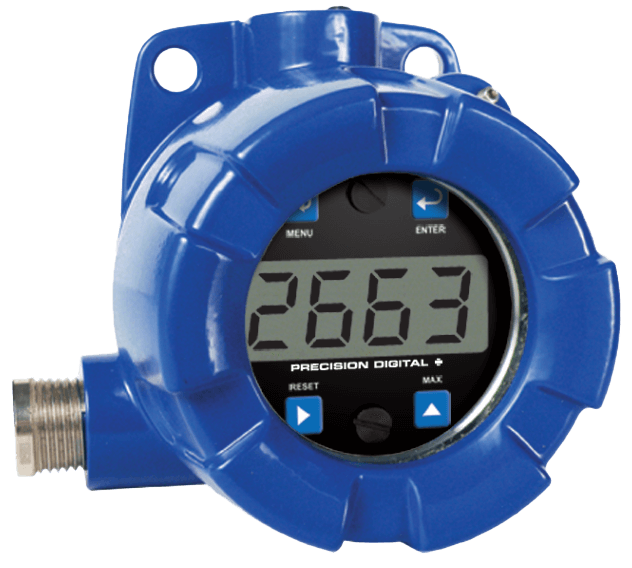

PD663 ProtEX-Lite Explosion-Proof Loop-Powered Meter
Brand: Precision Digital Corporation
The PD663 is a loop-powered field meter that is FM Approved and CSA Certified as Explosion-Proof, Dust-Ignition Proof, and Flame-Proof, and ATEX & IECEx Certified as Flame-Proof and Protection by Enclosure.
The PD663 is easy to install and program and it can be seen in a variety of lighting conditions and even in bright sunlight. The fact that this meter is loop-powered means that there is no need to run additional, costly power lines into a hazardous area. The meter gets all of the power it needs from the 4-20 mA loop and its 1.7 V drop results in a minimal burden on the loop.
The meter features a wide -40° to 75°C operating temperature range and comes with two 1/2" NPT threaded conduit openings and flanges for wall or pipe mounting. Calibration is a quick process involving the four internal push buttons. The PD663’s display will read up to 2999; we call this 3½+ digits!
Features- 4-20 mA Input
- Modern, Sleek and Practical Enclosure
- 3½+ Digits, 0.6” (15.24 mm) Display
- Display Mountable at 0°, 90°, 180°, & 270° Degrees.
- Easy Four-Button Programming
- Programmable Noise Filter
- Max/Min Display
- Loop-Powered Backlight Option
- 1.7 V Drop (4.7 V with Backlight)
- Explosion-proof, IP68, NEMA 4X Enclosure
- Flanges for Wall or Pipe Mounting
- HART Protocol Transparent
- Operates from -40° to 75° C (-40° to 167° F)
- 32-Point and Square Root Linearization Functions
Specifications
Approvals & Certifications
- ATEX, II 2 GD. Ex D IIC T6 Gb. Ex Tb IIIC T85° C Db IP68. Ta = -40 to 75° C
- CSA, Class I, Division 1, Groups B, C, D, Class II, Division 1, Groups E, F, G, Class III, Division 1, T6. Class I, Zone 1, Ex D IIC T6. Ta = -40 to 75° C
- FM Class I, Division 1, Groups B, C, D, Class II, Division 1, Groups E, F, G, Class III, Division 1, T6. Class I, Zone 1, AEx D IIC T6 Gb. Zone 21, AEx Tb IIIC T85° C. Ta = -40 to 75° C
- IECEx SIR 10.0056X. Ex D IIC T6 Gb. Ex Tb IIIC T85° C Db IP68. Ta = -40° to +75° C
Conduit Connection
- 1/2" NPT
Display
- 0.6" LCD
- 3-1/2-Digit LCD
Enclosure, Body Material
- Explosion-proof Cast Aluminum with Glass Window
Environmental Protection
- IP66
- IP68
- NEMA 4X
Humidity
- 0 to 90% Non-Condensing
Input
- 4-20 mA
Operating Temperature
- -40° to 75° C (-40° to 167° F)
Storage Temperature
- -40° to 75° C (-40° to 167° F)
Torque
- 4.5 In/Lbs
Voltage Drop
- 1.7 Vdc at 20 mA
- 4.7 Vdc at 20 mA with Backlight
