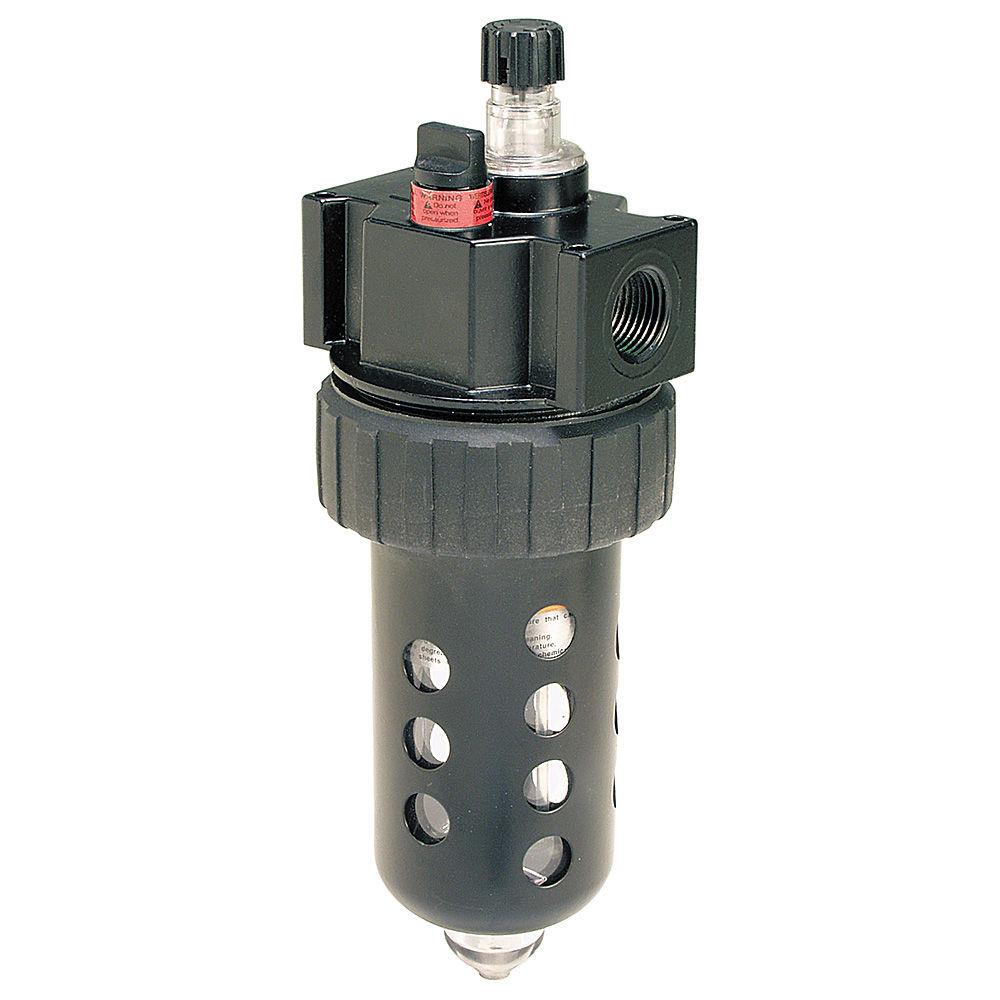

Standard Mist Lubricators - 07L Series (Standard)
Brand: Parker Hannifin Corp.The 07L is a standard mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices.
Specifications
Body Material
- Zinc
Bowl Material
- Transparent Bowl - Polycarbonate/Metal Bowl - Zinc
Drain Option
- Twist
Maximum Operating Flow Rate (scfm)
- 60 / 90 / 90 @ 90 psig
Minimum Operating Flow Rate (scfm)
- 0.5
Operating Pressure (bar)
- 0 to 10.3 (Polycarbonate Bowl) / 0 to 17.2 (Metal Bowl)
Operating Pressure (psig)
- 0 to 150 (Polycarbonate Bowl) / 0 to 175 (Metal Bowl)
Operating Temperature (°C)
- 0° to +52° (Polycarbonate Bowl) / 0° to +66° C (Metal Bowl)
Operating Temperature (°F)
- +32° to +125° F (Polycarbonate Bowl) / +32° to +175° F (Metal Bowl)
Port Size
- 3/8", 1/2", 3/4"
Port Type
- NPT
Product Type
- Standard Lubricator
Seal Material
- Nitrile
