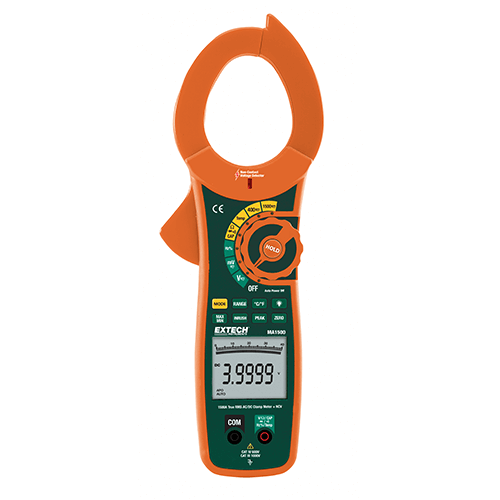

MA1500 1500A True RMS AC/DC Clamp Meter + NCV
Brand: ExtechThe MA1500 is a 1500A True RMS AC/DC Clamp Meter. 2.0 in. (52 mm) jaw size for conductors up to 500MCM with True RMS for accurate readings of non-sinusoidal waveforms. Additional features include: Relative Mode for Capacitance Zero and Offset Adjustment, Data Hold, Peak Hold, MIN/MAX, Auto Power Off, and Inrush function to capture transients during motor startup. Complete with test leads, Type K bead wire temperature probe, 9V battery and carrying case.
FeaturesSpecifications
Brand
AC Current
- 1500 A
AC Voltage (Max. Resolution)
- 750 V (0.01 mV)
Basic ACA Accuracy (% Reading)
- ± 2.8%
Capacitance (Max. Resolution)
- 40 MF (0.01 NF)
DC Current
- 1500 A
DC Voltage (Max. Resolution)
- 1000 V (0.01 mV)
Dimensions, Weight
- 11.6 x 4.1 x 1.9" (294 x 105 x 47 mm) / 18.9 oz. (536 g)
Diode, Continuity
- Yes
Display Counts
- 40,000 / 4000 Count LCD w/Bargraph (backlit)
Frequency (Max. Resolution)
- 40 MHz (0.001 Hz)
Jaw Size, Cable Size
- 2.0" (52 mm), 500MCM
Max. Resolution
- 0.01 A
Resistance (Max. Resolution)
- 40 MΩ (0.01 Ω)
Temperature
- -148 to 1832° F (-100° to 1000° C)
True RMS
- Yes
